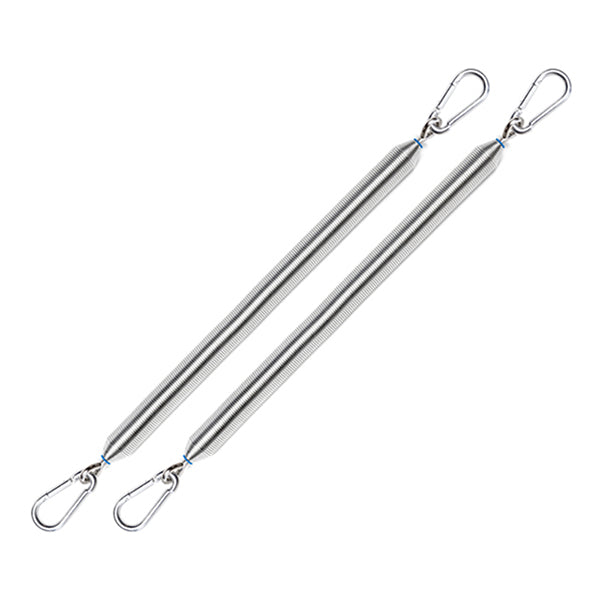

Push-Thru Spring - blue (pair)

Cadillac Replacement Parts - Product code: ST-05126
$224.02 (inc GST)
This product is available on back order

These Push Thru Springs are made exclusively for Merrithew™ Cadillac/Trapeze Tables, Reformer Vertical Frames and Wall Units. Each is nickel-plated and heat-treated to protect the base material of the spring. This ensures the quality and integrity of its tension throughout its life. Sold as a pair and includes 4 spring clips.

Merrithew™ springs are built to withstand vigorous use in professional or commercial environments.  To maintain performance and warranty, springs require replacement every two years.

Spring Resistance Details

Overall length of the spring is 18” with an initial tension of 6.688 lbs (load required to open the coils without extension)

Spring rate of 1.157 lb/inch (load required to extend spring every inch after the initial tension is applied)

Dimensions

  • Length  45.7 cm
  • Coil Diameter  29 mm

STOTT PILATES® trained? Tell us about your training to see if you qualify for our Education Discount Program.
